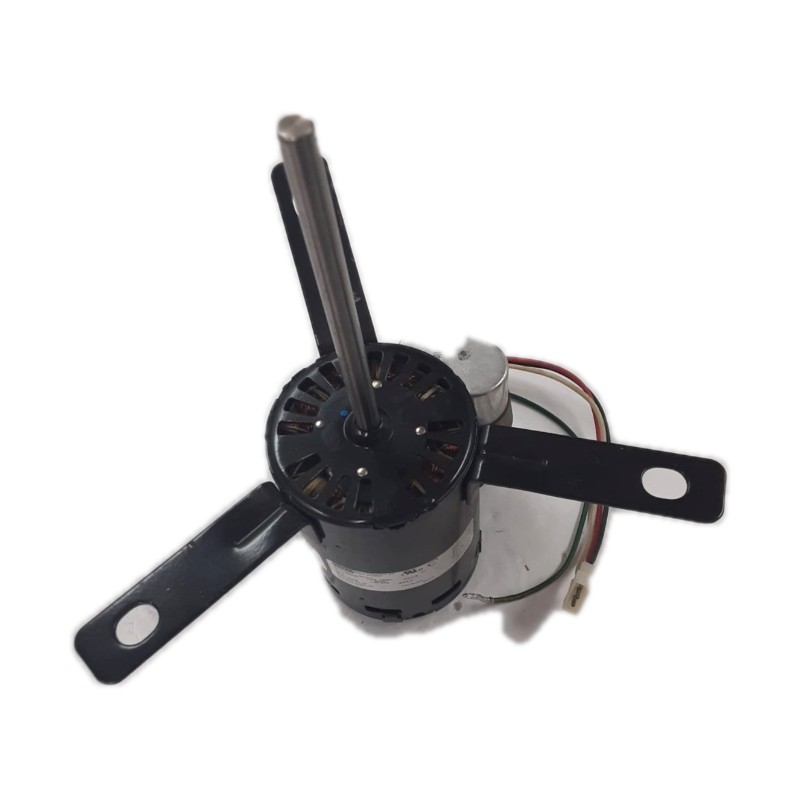

Fasco D0346 Single-Phase OEM Replacement Blower Motor

Fasco D0346 Single-Phase OEM Replacement Blower Motor.

Specifications

• Brand: Fasco
• Part number: D0346
• Type: Blower Motor
• Performance: 1/4 HP, dual-speed operating at 1050 RPM (Low) / 1550 RPM (High)
• Electrical Specs: 115 Volts, 60 Hz frequency, drawing 2.9 Amps
• Motor Design: Permanent Split Capacitor (PSC) motor type with an Open Air Over (OAO) enclosure and a 3.3″ frame diameter
• Capacitor Requirements: Requires a 12.5 Mfd / 370 Volt capacitor (included by default)
• Shaft Dimensions: 3/8″ diameter flat-sided shaft measuring 5.44 inches in length
• Rotation & Mounting: Counter-clockwise shaft end (CCWSE) rotation orientation, configured for secure lug mounting
• Safety & Build: Class B insulation rated for a 40°C ambient environment, featuring sleeve bearings and automatic thermal overload protection
• Condition: New
• Country of origin: Mexico

Typical applications

Replacement motor. Match the horsepower, voltage, RPM, frame and rotation of the original before ordering, and turn off power before servicing.

Before you order, match the part number or the specs on the nameplate of the part you are replacing. Not sure it fits? Send us the model and serial number of your unit and we will confirm.
