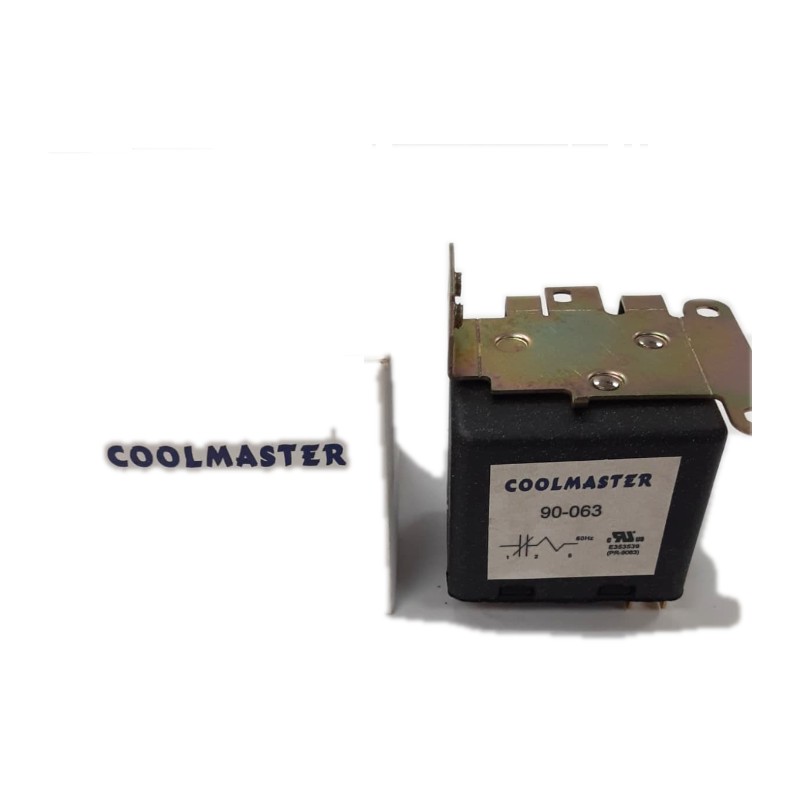

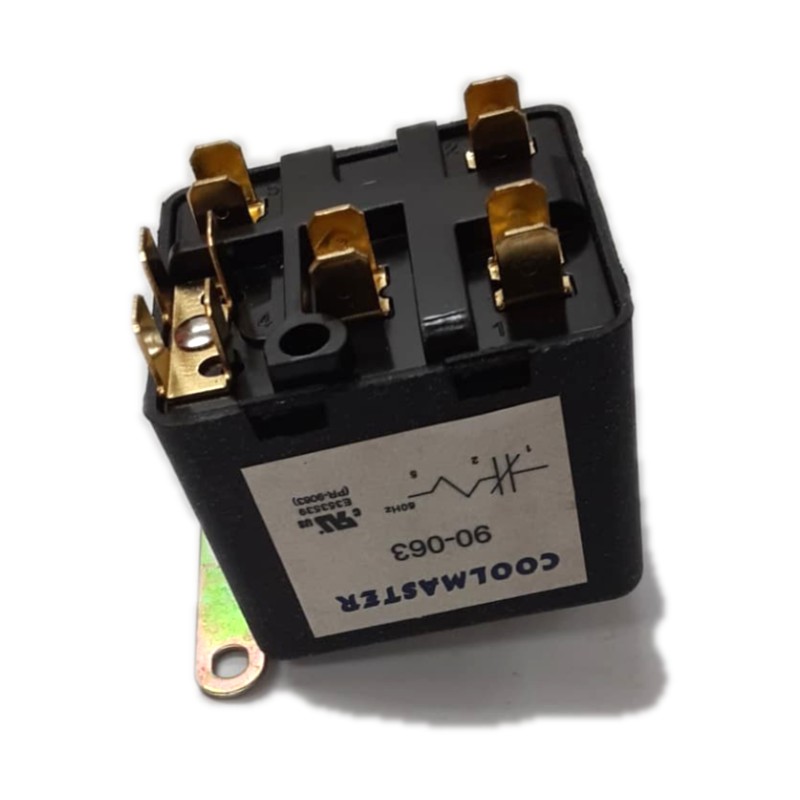

Coolmaster 90-063 Potential Relay
Coolmaster 90-063 Potential Relay, Continuous 170V rating.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$18.79
10 in stock
10 in stock
20
People watching this product now!
Payment Methods:
Coolmaster 90-063 Potential Relay.
Specifications
- Brand: Coolmaster
- Part number: 90-063
- Coil Voltage: Continuous 170V rating
- Minimum Pick-Up Voltage: 139V to 140V (the threshold where the relay coil forces the contacts open)
- Maximum Pick-Up Voltage: 153V
- Maximum Drop-Out Voltage: 55V to 65V (the point where the coil releases and contacts snap closed again)
- Frequency: 50 / 60 Hz applications
- Duty Cycle: Continuous
- Condition: New
- Country of origin: China
Typical applications
Replacement control for HVAC and refrigeration equipment. Match the part number, voltage and ratings of the original before installing, and turn off power before servicing.
Before you order, match the part number or the specs on the nameplate of the part you are replacing. Not sure it fits? Send us the model and serial number of your unit and we will confirm.
| mpn |
90-063 |
|---|
